COB LED Technology: The Ultimate Guide to Cutting-Edge Lighting Solutions

Chip-on-Board (COB) LED technology has revolutionized the lighting industry, offering superior brightness, energy efficiency, and versatility. This innovative approach to LED lighting has gained significant traction in recent years, with the market projected to grow from USD 1.9 billion in 2022 to USD 5.5 billion by 2032, at an impressive CAGR of 11.8%. As we delve deeper into this guide, we'll explore the intricacies of COB LED technology and its significant impact on various lighting sectors.

What Are COB LEDs and Their Advantages?

COB LEDs are a type of LED packaging technology where multiple LED chips are packaged together as one lighting module.This design allows for a higher density of LEDs in a single array, resulting in several key advantages:

1. Superior Brightness: COB LEDs can achieve impressive light output, with some models producing up to 1400 Lumens per meter. This high luminous flux makes them ideal for applications requiring intense illumination.

2. Energy Efficiency: COB LEDs are incredibly efficient, with some models achieving up to 190 lumens per watt. This high efficacy translates to significant energy savings compared to traditional lighting solutions.

3. Uniform Light Output: The tightly packed diodes in COB LEDs create a seamless light source, eliminating the "dotted" appearance often seen with other LED types. This results in a smooth, continuous light that's pleasing to the eye and ideal for many lighting applications.

4. Excellent Color Rendering: Many COB LEDs offer high Color Rendering Index (CRI) values, with some models achieving CRI ratings of 90 or above. This means they can accurately represent colors, making them suitable for applications where color accuracy is crucial.

5. Improved Heat Dissipation: The design of COB LEDs often incorporates better heat management, allowing for more stable performance and longer lifespans.

6. Flexibility in Design: COB LED strips can be easily cut to desired lengths and bent to fit various shapes, making them highly adaptable for different lighting designs.

These advantages have made COB LEDs increasingly popular in various lighting applications, from residential and commercial lighting to automotive and industrial uses.

COB LED Strip Lights: A Comprehensive Overview

COB LED strip lights represent one of the most versatile and popular applications of COB LED technology. These strips offer a unique combination of high light output, flexibility, and ease of installation that makes them ideal for a wide range of lighting projects.

Key features of COB LED strip lights include:

Continuous Light Source: Unlike traditional LED strips where individual diodes are visible, COB LED strips provide a smooth, uninterrupted line of light. This creates a more professional and aesthetically pleasing appearance.

High Density LEDs: COB LED strips can pack up to 512 LEDs per meter, resulting in an incredibly bright and uniform light output.

Wide Beam Angle: With a beam angle of 180 degrees, COB LED strips offer broad light distribution, reducing shadows and creating even illumination across surfaces.

Customizable Length: Most COB LED strips can be cut at designated points, allowing users to customize the length to fit their specific needs.

Energy Efficiency: These strips typically offer an energy efficiency of 100-110 lumens per watt, contributing to lower energy costs and reduced environmental impact.

Long Lifespan: With a typical lifespan of around 50,000 hours, COB LED strips offer long-term reliability and reduced maintenance needs.

These features make COB LED strips an attractive option for various applications, including under-cabinet lighting, display case illumination, accent lighting, and architectural designs where a sleek, continuous light source is desired.

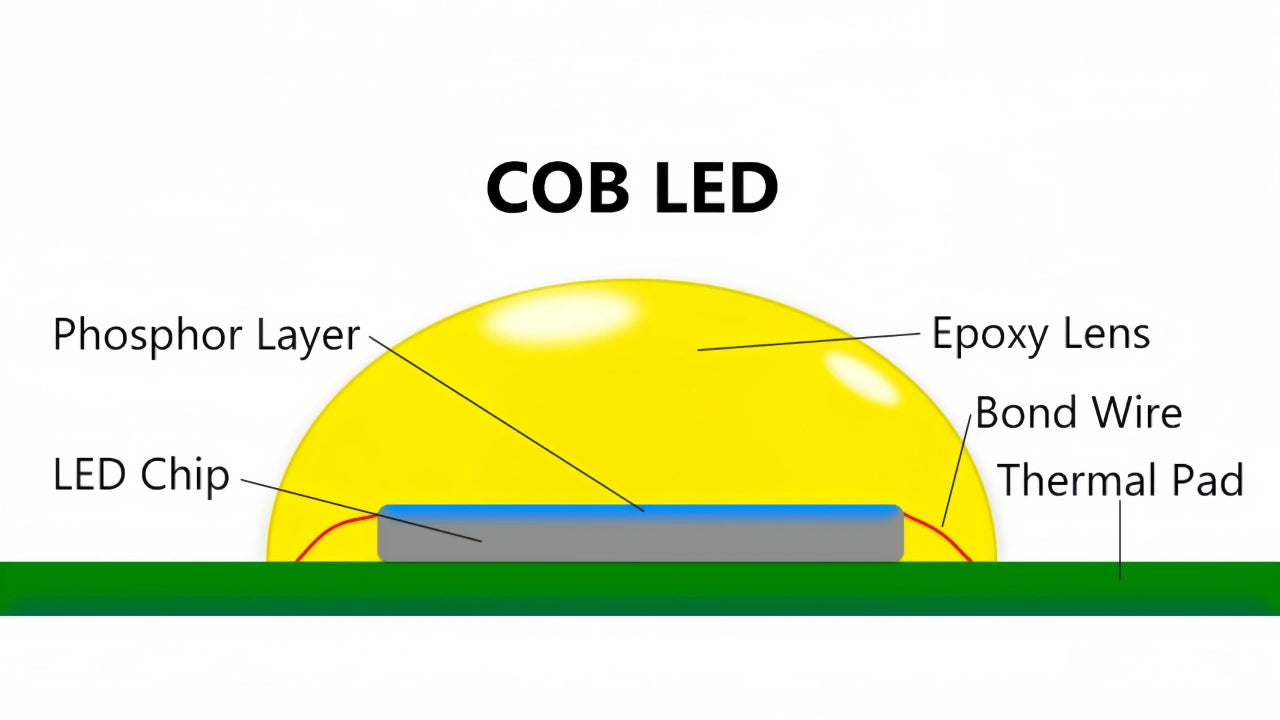

How COB LEDs Work: A Technical Breakdown

The functionality of COB LEDs is rooted in their unique design and manufacturing process. Here's a detailed look at how these innovative light sources work:

1. Chip Mounting: The process begins with multiple LED chips being mounted directly onto a highly thermally conductive substrate, typically made of ceramic or aluminum. This substrate serves as both an electrical conductor and a heat sink.

2. Phosphor Coating: Once the chips are mounted, a uniform layer of phosphor is applied over the entire array. This phosphor coating is crucial for converting the blue light emitted by the LED chips into white light or other desired color temperatures.

3. Encapsulation: The entire array is then encapsulated in a protective layer, usually made of silicone. This encapsulation protects the LEDs and phosphor from environmental factors and helps to distribute the light evenly.

4. Heat Management: The substrate's thermal conductivity plays a vital role in managing heat. As the LEDs generate heat during operation, it's efficiently conducted away from the chips, helping to maintain performance and longevity.

5. Electrical Connections: The substrate is connected to a power source, typically through soldered connections or specialized connectors. When current flows through the substrate, it powers all the LED chips simultaneously.

6. Light Output: As the LED chips are powered, they emit blue light. This blue light interacts with the phosphor layer, which absorbs some of the blue light and re-emits it as yellow light. The combination of the remaining blue light and the yellow light creates white light.

7. Color Temperature Control: By adjusting the composition and thickness of the phosphor layer, manufacturers can control the color temperature of the light produced, ranging from warm white to cool white.

This integrated design allows COB LEDs to produce a high light output from a relatively small area, with excellent thermal management and uniform light distribution. The result is a highly efficient, bright, and versatile light source that's finding applications across numerous lighting sectors.

COB LED Technology vs. Traditional LED Options

When comparing COB LED technology to traditional LED options like Surface Mount Device (SMD) and Integrated Matrix Device (IMD) LEDs, several key differences emerge:

Light Output and Density:

• COB LEDs: Offer the highest density of LED chips, resulting in superior brightness and uniformity.
• SMD LEDs: Provide good light output but with visible individual diodes.
• IMD LEDs: Offer improved density over SMD but not as high as COB.

Heat Management:

• COB LEDs: Excel in heat dissipation due to their design, allowing for higher power applications.
• SMD LEDs: Generally have good heat management but may struggle at higher powers.
• IMD LEDs: Offer improved heat management over SMD but not as efficient as COB.

Color Consistency:

• COB LEDs: Provide excellent color consistency across the entire light-emitting surface.
• SMD LEDs: May show slight color variations between individual diodes.
• IMD LEDs: Offer improved consistency over SMD but not as uniform as COB.

Design Flexibility:

• COB LEDs: Highly flexible for various designs, especially in strip light applications.
• SMD LEDs: Offer good flexibility but may show visible gaps in strip applications.
• IMD LEDs: Provide a middle ground between SMD and COB in terms of flexibility.

Cost:

• COB LEDs: Generally more expensive due to complex manufacturing processes.
• SMD LEDs: Usually the most cost-effective option.
• IMD LEDs: Typically priced between SMD and COB options.

Efficiency:

• COB LEDs: Offer high efficiency, with some models achieving up to 190 lm/W.
• SMD LEDs: Generally efficient but may not match the highest COB efficiencies.
• IMD LEDs: Offer improved efficiency over SMD but may not reach COB levels.

Applications:

• COB LEDs: Ideal for high-brightness applications and where uniform light is crucial.
• SMD LEDs: Suitable for a wide range of general lighting applications.
• IMD LEDs: Often used in display technologies and specialized lighting applications.

These comparisons highlight the strengths of COB LED technology, particularly in applications requiring high brightness, uniform light output, and excellent heat management. However, the choice between these technologies often depends on specific project requirements, budget considerations, and desired lighting effects.

COB LED Strip Lights: Installation and Applications

Installing COB LED strip lights can be a straightforward process, but it requires attention to detail to ensure optimal performance and longevity. Here's a step-by-step guide for installation:

1. Preparation:

• Measure the area where you plan to install the strips.
• Ensure you have all necessary tools: wire cutters/strippers, soldering iron, heat shrink tubing, and a multimeter.
• Choose a power supply unit (PSU) that matches the voltage and current requirements of your COB LED strip.

2. Cutting the Strip:

• If needed, cut the COB LED strip at designated cutting marks to fit your installation area.
• Identify the positive (+) and negative (-) terminals on the strip.

3. Connecting to Power:

• Solder wires to the COB LED strip terminals, ensuring secure connections.
• Use heat shrink tubing or electrical tape to insulate the soldered joints.

4. Mounting:

• Clean the surface where you'll mount the strips.
• If the strips have an adhesive backing, carefully peel and stick them in place.
• For strips without adhesive, use mounting clips or brackets.

5. Power Connection:

• Connect the wired LED strip to your PSU, matching positive and negative terminals.

6. Testing:

• Before finalizing the installation, connect the PSU to power and test the LED strip.
• Use a multimeter to check voltage at connections if needed.

Applications for COB LED strip lights are diverse and include:

1. Under-cabinet Lighting: Provides even illumination for kitchen workspaces.
2. Display Case Lighting: Offers bright, uniform light to showcase products effectively.
3. Accent Lighting: Creates ambient lighting in living spaces or highlights architectural features.
4. Automotive Interior Lighting: Provides sleek, modern lighting for vehicle interiors.
5. Signage: Offers bright, even illumination for backlit signs and displays.
6. Architectural Lighting: Can be used to outline building features or create dramatic lighting effects.

When installing COB LED strips, consider factors like heat dissipation (using aluminum channels when necessary), voltage drop over long runs, and appropriate dimming solutions for added control and ambiance.

Conclusion

In conclusion, COB LED technology stands as a beacon of innovation in the lighting industry, providing unparalleled brightness and energy efficiency. Its rapid market growth underscores its increasing adoption across diverse sectors. We invite you to share this comprehensive guide with others who might benefit from understanding COB LED technology, and don't hesitate to leave your thoughts and questions in the comments section below!

FAQs

What makes COB LED technology different from traditional LEDs?

COB (Chip-on-Board) LED technology differs from traditional LEDs in several key ways. Firstly, COB LEDs feature multiple LED chips mounted directly onto a single substrate, creating a more compact and efficient light source. This design results in higher light density and more uniform illumination compared to traditional LEDs, where individual diodes are often visible.

COB LEDs also offer superior heat management due to their integrated design, allowing for higher brightness levels without compromising longevity. The unified light-emitting surface of COB LEDs eliminates the dotted appearance often associated with traditional LED strips, providing a smoother, more professional look. Additionally, COB LEDs typically offer better color consistency and can achieve higher Color Rendering Index (CRI) values, making them ideal for applications where accurate color representation is crucial.

Are COB LED strips suitable for outdoor use?

While COB LED strips offer many advantages, their suitability for outdoor use depends on several factors. Most standard COB LED strips are rated IP30, which means they are not inherently water-resistant and are primarily designed for indoor use. However, some manufacturers produce specially designed outdoor COB LED strips with higher IP ratings (such as IP65 or IP67) that offer protection against dust and water ingress.

For outdoor applications, it's crucial to choose COB LED strips specifically rated for external use. These outdoor-rated strips often feature additional protective coatings or enclosures to shield the LEDs from moisture, UV radiation, and temperature fluctuations. When installing COB LED strips outdoors, it's also important to ensure that all connections and power supplies are properly protected from the elements.

Even with outdoor-rated strips, it's recommended to install them in areas with some protection from direct exposure to harsh weather conditions to maximize their lifespan and performance. Always consult the manufacturer's specifications and installation guidelines when considering COB LED strips for outdoor applications.

How do I choose the right power supply for my COB LED strip installation?

Selecting the appropriate power supply for your COB LED strip installation is crucial for optimal performance and longevity. Here are several factors to consider:

1. Voltage Requirements: Ensure the power supply matches the voltage requirements of your COB LED strips. Most strips operate on either 12V or 24V DC.

2. Wattage Calculation: Determine the total wattage required by multiplying the wattage per meter of your LED strip by the total length in meters. Add about 20% extra capacity to this figure to avoid overloading the power supply.

3. Quality and Safety: Choose a power supply from a reputable manufacturer that meets relevant safety standards (e.g., UL listed).

4. Indoor vs. Outdoor Use: If your installation is outdoors, ensure you select a power supply rated for outdoor use with appropriate IP ratings.

5. Dimming Compatibility: If you plan to use a dimmer, make sure your power supply is compatible with the dimming method you intend to use (e.g., PWM dimming).

6. Size and Location: Consider the physical size of the power supply and where you'll place it in relation to your LED installation.

7. Future Expansion: It's often wise to choose a power supply with some extra capacity in case you decide to expand your lighting installation later.

Remember, it's always better to slightly oversize your power supply than to push it to its limits. This ensures better performance and longevity of both the power supply and your COB LED strips.
