This comprehensive guide delves into the world of High Dynamic Range (HDR) and High Dynamic Range Imaging (HDRI), exploring their core concepts, differences, applications, and the latest advancements. We'll unravel the complexities, offering a clear understanding for both beginners and experienced professionals.
The Basics of HDR
HDR (High Dynamic Range) technology revolutionizes image capture and display by expanding the range of luminance (brightness) and color that can be represented. Unlike Standard Dynamic Range (SDR), which has limitations in capturing both bright highlights and dark shadows simultaneously, HDR captures a much broader spectrum. This results in images with significantly improved detail, realism, and vibrancy.
How HDR Improves Image Quality
HDR's impact on image quality stems from its ability to represent a wider range of light intensities. In SDR, details are often lost in either the highlights (overexposed areas) or the shadows (underexposed areas). HDR mitigates this, preserving detail across the entire spectrum. The result is a more natural and accurate representation of the scene, with richer colors and more visible textures. For example, in a landscape photo, HDR would reveal fine details within both the bright sunlit sky and the deep shadows of a forest. This increased dynamic range—the difference between the brightest and darkest parts of an image—is measured in stops. While standard images might capture 6 to 8 stops of dynamic range, HDR can capture 10 stops or more, leading to a visually stunning difference.
The Role of HDR in Photography and Videography
HDR’s applications span across various fields:
-
Photography: Landscape, architectural, and event photography greatly benefit from HDR, showcasing vivid details that would otherwise be lost in extreme contrast. The ability to capture accurate representations of light and shadow is particularly valuable in architectural photography, conveying textures and details of materials with greater precision.
-
Videography: HDR video offers improved depth, heightened color vibrancy, and meticulous detail preservation even in the brightest highlights and darkest shadows. Genres like fantasy, sci-fi, and horror films particularly leverage HDR technology to create immersive visual experiences.
-
Real Estate: HDR photography is now the standard, enhancing the visual appeal of properties by accurately representing lighting and textures. This enables potential buyers to assess property details better.
The Concept of HDRI
HDRI (High Dynamic Range Imaging) builds upon the principles of HDR by encapsulating the entire environment surrounding a scene within a single panoramic image. This significantly enhances the realism and accuracy of lighting and reflections in 3D renders. Unlike HDR, which focuses primarily on image capture and display, HDRI provides complete lighting data, serving as an environment map, reflecting the scene and offering true to life visuals.
HDRI's Role in Providing Pseudo-Global Lighting
In 3D computer graphics, HDRI files are used to simulate global illumination. Traditional lighting techniques can struggle to accurately represent realistic interactions of lighting, such as reflections and refractions. HDRI circumvents this by providing a comprehensive light field surrounding the 3D model, creating more realistic and detailed lighting and reflections. This is particularly crucial for architecture visualization, where precise lighting conditions are paramount. For example, renders using HDRI will accurately portray the way sunlight streams through windows, affects shadows in the building model, and is reflected by the building's surfaces, as compared to using a simple point-light source.
The Importance of HDRI in Reflections
The impact of HDRI is most vividly seen in the improved realism of reflected light. HDRI maps provide a rich and detailed source of data for reflections, so the reflections captured in objects within a render show true to life colors and highlight details. In an automobile rendering, for example, the reflection from an HDRI environment map might reveal a lively cityscape in the car's glossy surface.
HDRI Applications in 3D Computer Graphics
The applications of HDRI in 3D computer graphics span across numerous sectors:
-
Architecture visualization: Tools like V-Ray, Enscape, and Lumion use HDRI to create photorealistic representations of architectural projects, ensuring utmost accuracy of the final project.
-
Automotive photography: Software like Keyshot and Autodesk Renderer use HDRI to make images show more detail in highlights and shadows, enhancing color accuracy and exposure control, resulting in stunning realism (e.g., a 'Car Showcase in a City Environment' rendered in August 2024).
-
Product photography: Blender and Maya leverage HDRI to create vibrant, high-detail product images perfect for marketing materials (e.g., a ‘Smartphone Product Launch’ in September 2024). HDRI allows for dynamic lighting adjustments tailored optimally to the product's characteristics.
-
Virtual Reality (VR): In VR, HDRI makes believable environments for virtual walkthroughs (e.g., in real estate), improving client understanding and engagement through accuracy, utilizing software packages like Unreal Engine 5 and Unity. The increased realism enhances the immersive quality, making the experience virtually indistinguishable from reality.
The benefits of HDRI include realistic rendering, enhanced exposure control, and superior color accuracy. HDRI provides a dynamic range far exceeding that of traditional LDR (Low Dynamic Range) images. This enhanced dynamic range captures a far wider spectrum of light details, representing around 4.29 billion values compared to standard LDR's 256 values.
The implementation of HDRI usually involves capturing multiple LDR images at different exposures, merging them using software like Photoshop or HDRsoft, and then using the resulting HDRI as an environment map in 3D software tools like Maya, Blender, and 3ds Max. Software updates, like those seen in Adobe Photoshop 2024 (enhanced tone mapping) and Blender 3.5 (improved HDRI support), continually improve the workflow and rendering capabilities.
What Makes HDRI Technology Advanced?
HDRi builds upon HDR and HDRI, introducing proprietary algorithms that intelligently adjust color tone and enhance the overall quality of visual scenes. While HDR focuses on expanding the dynamic range of the image, HDRi incorporates sophisticated processing techniques to optimize the visual output and ensure a more pleasing and natural look.
How HDRi Adjusts Color Tone and Enhances Visual Quality
HDRi technology uses proprietary algorithms to tone map high-dynamic-range images for display on standard displays. Tone mapping is the process of compressing the wide range of luminance inherent to HDR images into the limited range of a standard display, so the details and colors are shown on a range human eyes are accustomed to. This involves sophisticated algorithms that intelligently map the HDR information onto the available display range. This process helps avoid washed-out highlights and crushed blacks.

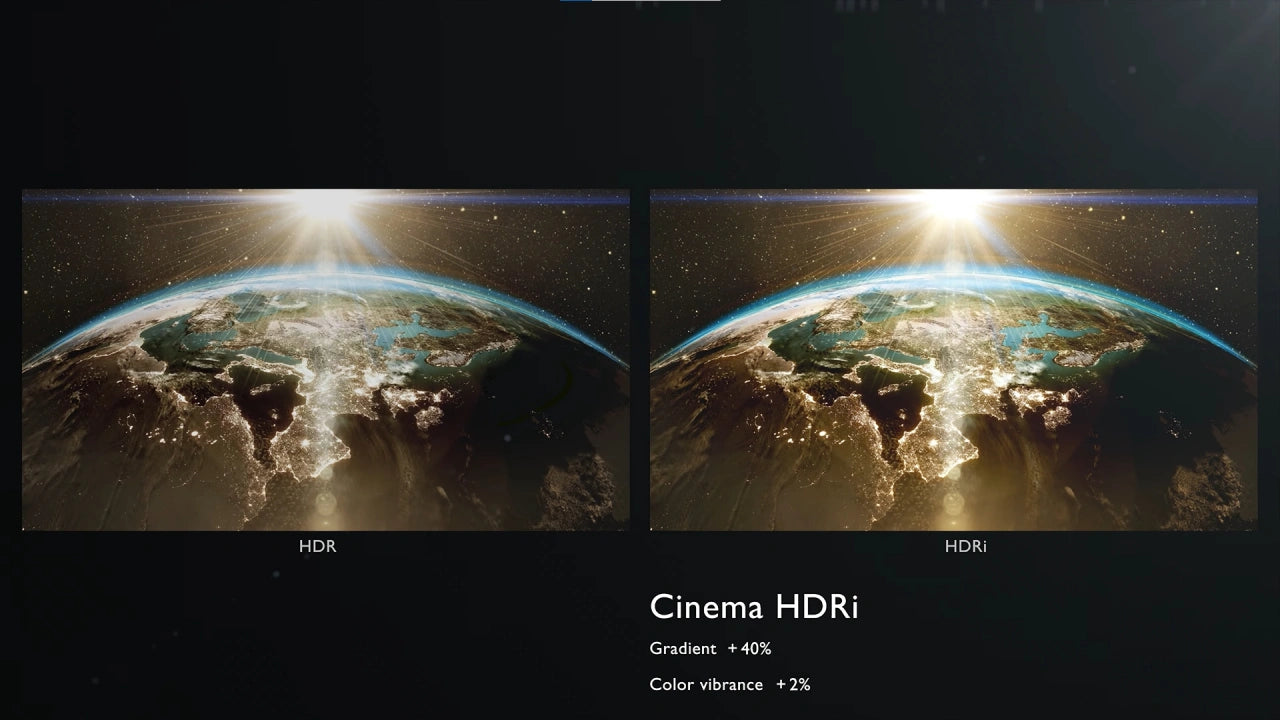

The Difference Between HDRi and HDR
While HDR expands the range of luminance and color accurately, HDRi goes further using advanced techniques to refine the final image and make it more visually appealing. HDRi is a step up, offering a higher level of visual refinement, especially beneficial in minimizing washout on HDR400 displays with limited brightness.
Proprietary HDRi Technologies: A Closer Look
Several companies have developed proprietary HDRi technologies that contribute to capturing and processing of HDR and subsequently producing final images or videos:
-
onsemi Hyperlux: This technology uses a 2.1 µm pixel size and delivers an impressive signal-to-noise ratio (SNR) of above 30 dB even at high temperatures (+100°C), making it ideal for challenging HDR imaging conditions.
-
Sony STARVIS2 with ClearHDR: This technology simultaneously captures low-gain images for highlights and high-gain images for shadows, combining them to produce a stunning HDR result.
-
e-con Systems STURDeCAM31: This 3MP camera uses sub-pixel technology for HDR imaging, boasting GMSL2 interface and IP69K certification, ideal for robust applications.
The creation of HDRI maps often involves a multi-exposure bracketing technique. For example, capturing up to 18 or 23 exposures per angle is not uncommon to ensure the HDRI images completely capture the dynamic range of the entire scene. Accurate color reproduction across diverse lighting conditions is essential, demanding meticulous color calibration using tools like the X-Rite Colour Checker Passport to reduce discrepancies in white balance.
HDR vs. HDRI: A Detailed Comparison
HDR and HDRI, while related, serve different purposes: HDR focuses on the capture and reproduction of a wide range of luminance values within a single image or video frame; HDRI creates a panoramic image encompassing an entire environment, providing detailed lighting information suitable for simulating real-world lighting conditions and reflections in 3D rendering. Think of HDR as improving the quality of a single photograph, and HDRI as creating a realistic, comprehensive environment for a 3D scene. Both improve digital visualization, but they do so in different ways.
HDR10 and HDRi: A Closer Look
HDR10 is a widely adopted standard for HDR video content, defining the metadata specifications for transmitting HDR information to the display. Its advantages include broader color gamut and higher peak brightness, surpassing SDR. However, HDR400 monitors can still display HDR10 video, but may face limitations given their lower peak brightness, leading to HDR content that may appear less vibrant than it truly is. This is where HDRi comes into play to optimize the image and minimize washout. HDRi intelligently manages the tone mapping and color adjustments, helping to retain image details across highlights and shadows. HDRi is an enhancement technique, not a transmission standard.
HDRI Maps: The Unsung Heroes of 3D Graphics
HDRI maps are panoramic images, capturing a 360° view of an environment. They are typically in HDR format, such as EXR, and often use spherical projections to map lighting to 3D scenes. What makes them unique is that they accurately store lighting information from various directions. For example, rather than using simple point light sources to simulate a scene, HDRI maps provide significantly more detail and realism.
Current Advancements in HDR Technology for Videography
Recent advancements in HDR videography build upon the advancements in image sensors, processing power, and algorithms. These include:
-
Advanced Sensors: New sensors are designed to gather more light data, enhancing HDR images and videos significantly. The size and sensitivity of these sensors directly impact the overall quality.
-
Enhanced Processing Power: Real-time HDR imaging is facilitated by rapidly improving processing power, letting photographers and videographers see the HDR effects live during shooting without lags. This real-time functionality is crucial for efficient workflow and creative decision-making.
-
Intelligent Software Algorithms: Sophisticated algorithms are now used for more accurate and seamless image merging across various exposures, reduction of noise, and elimination of artifacts. This greatly improves the usability and applicability of HDR.
Conclusion
HDR and HDRI technologies represent a pivotal advancement in visual representation, significantly improving the realism and detail in both still images and 3D environments. While HDR enhances the quality of individual images and videos, HDRI provides comprehensive environmental lighting data resulting in more believable and compelling visualizations. The combined use of both technologies, alongside HDRi processing techniques, facilitates realistic renderings, enhancing immersion in fields such as gaming, virtual reality, and architectural visualization. As technology keeps advancing, we can expect further improvements and democratization of access, allowing broader use across various creative fields.
FAQs: Clearing the Confusion about HDR and HDRI
1. What is the difference between HDR, HDRI, and HDRi?
HDR (High Dynamic Range) focuses on capturing and displaying a greater range of light intensities and colors than standard dynamic range imaging. Think of a photo. HDR improves the photo quality. HDRI (High Dynamic Range Imaging) goes further, capturing and storing the lighting data of a whole 360° environment. You can visualize this as a complete panorama for a 3D model environment. HDRi (High Dynamic Range Imaging), meanwhile, is a processing and display technique. It focuses on intelligently improving the visual quality of HDR images, working with various image processing techniques. This is more of a refining technique, especially important when displaying HDR images on monitors with limited brightness capabilities.
2. How can I create my own HDRI map?
Creating a high-quality HDRI map requires specialized equipment and expertise. You’ll need a high-resolution 360° camera capable of capturing HDR images. This typically requires a panorama camera, which features multiple lenses creating one 360° picture. Then you need the software (like Adobe Lightroom, Photoshop, Hugin or PTGui) to stitch these together to create the full HDRI map. Capturing requires multiple exposures (bracketing) to capture the full dynamic range, usually a minimum of three, often more, to prevent loss of highlights and shadows. This technique captures a range of exposures to ensure the HDRI map preserves the brightest and darkest parts of the image fully. After capturing, merging those pictures is the next step. Then software tools are then necessary to convert the combined images into the final HDRI file commonly in a format like EXR, ready for use in 3D software. Accurate color calibration is important to ensure consistent color reproduction, best done using color charts for reference and calibration.
3. What are the limitations of HDR and HDRI technologies?
While HDR and HDRI offer significant advantages, they face certain limitations. HDR content requires HDR-compatible displays to be fully appreciated. Standard displays can't show the full potential of HDR. HDRI map creation demands specialized and expensive cameras and the expertise for post-processing. The file sizes of HDR and HDRI tend to be much larger than those of standard images, needing more storage and potentially slower processing times. In gaming, HDR implementation relies heavily on the game's engine capabilities and, therefore, it varies widely whether HDR is supported or not. HDR may also require more powerful hardware to render the scene properly.
