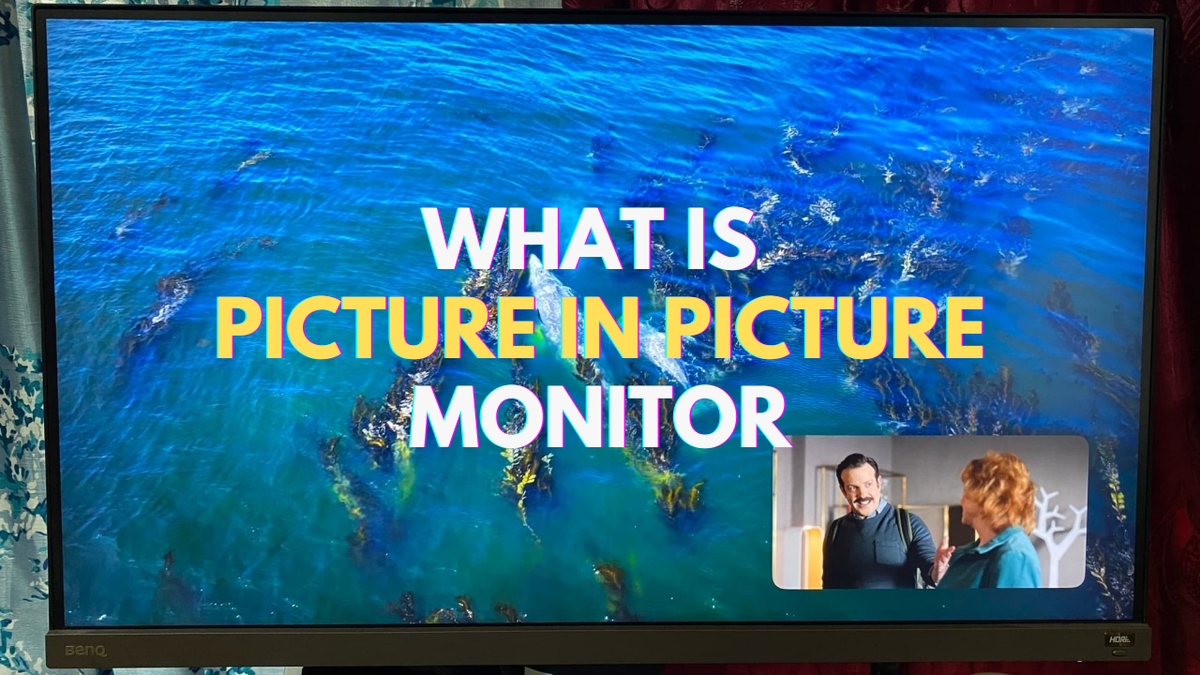

What is a Picture-in-Picture (PiP) Monitor and How Does it Work?

Picture-in-Picture (PiP) monitors have revolutionized the way we multitask and consume content. These innovative displays allow users to view multiple video sources simultaneously, enhancing productivity and entertainment experiences. In this article, we'll explore the fascinating history of PiP technology, its evolution over the years, and its relevance in today's fast-paced digital landscape.

Understanding PiP Monitor Basics

What is Picture-in-Picture (PiP)?

Picture-in-Picture (PiP) is a display feature that enables users to view two video sources on a single screen simultaneously. The primary video source occupies the full screen, while the secondary source appears in a smaller window overlaid on top of the main image. This technology allows users to monitor multiple feeds or applications concurrently, making it an invaluable tool for multitasking and enhanced productivity.

How PiP Differs from Picture-by-Picture (PbP)

While PiP and Picture-by-Picture (PbP) both allow users to view multiple video sources on a single screen, there are some key differences between the two technologies. PbP splits the screen into two or more equal-sized windows, each displaying a separate video source. Unlike PiP, PbP does not overlay the secondary image on the primary one; instead, it divides the screen into distinct areas, enabling users to view and compare multiple sources side by side.

Common Uses and Scenarios for PiP

PiP monitors have numerous applications across various industries and personal use cases. Some common scenarios where PiP proves invaluable include:

1. Multitasking: Professionals can use PiP to monitor multiple data streams, applications, or video feeds simultaneously, enhancing their workflow efficiency.
2. Gaming: Gamers can employ PiP to view walkthroughs, tutorials, or live streams while playing their favorite games, improving their gaming experience and skills.
3. Entertainment: PiP allows users to watch a movie or TV show while keeping an eye on live news, sports events, or social media feeds, providing a more engaging and immersive entertainment experience.

Picture-by-Picture (PbP) Explained

Definition and Features of PbP Monitors

Picture-by-Picture (PbP) monitors offer a unique set of features that distinguish them from traditional displays. PbP technology enables users to view two or more independent video sources side by side on a single screen, each with its own resolution, refresh rate, and aspect ratio. This feature is particularly useful for comparing multiple data sets, documents, or media files simultaneously.

When to Use PbP Over PiP

While both PbP and PiP offer the ability to display multiple video sources, there are certain situations where PbP proves more advantageous:

1. Data Analysis: PbP is ideal for comparing multiple data sets, charts, or graphs side by side, facilitating more efficient data analysis and decision-making.
2. Content Creation: Video editors, graphic designers, and other content creators can benefit from PbP by displaying reference materials alongside their work, streamlining their creative process.
3. Presentations: PbP allows presenters to display multiple media sources, such as slides, videos, and live demonstrations, enhancing the impact and clarity of their presentations.

Dual-Source Display Capabilities

One of the key advantages of PbP monitors is their ability to process and display two independent video signals simultaneously. This dual-source display capability ensures that each video source maintains its native resolution and refresh rate, providing users with an uncompromised viewing experience. PbP monitors often feature multiple HDMI, DisplayPort, and USB-C inputs, accommodating a wide range of devices and ensuring seamless connectivity.

PiP Monitor Features and Benefits

Multi-Source Connectivity Options

PiP monitors offer a plethora of connectivity options, allowing users to connect multiple devices simultaneously. Most PiP monitors feature a combination of HDMI, DisplayPort, and USB-C ports, enabling users to connect computers, gaming consoles, streaming devices, and other video sources with ease. This multi-source connectivity makes PiP monitors incredibly versatile, catering to a wide range of professional and personal use cases.

Customizable Layouts and Screen Management

Another significant benefit of PiP monitors is their customizable layouts and screen management options. Users can adjust the size, position, and transparency of the PiP window to suit their preferences, ensuring an optimal viewing experience. Some advanced PiP monitors even offer split-screen layouts, allowing users to display multiple video sources side by side, further enhancing multitasking capabilities.

Advantages for Work, Gaming, and Multimedia Consumption

PiP monitors offer numerous advantages across various domains:

1. Work: Professionals can use PiP monitors to streamline their workflow, monitoring multiple applications, data feeds, or communication channels simultaneously. This enhanced multitasking capability leads to increased productivity and efficiency.
2. Gaming: Gamers can leverage PiP technology to view walkthroughs, tutorials, or live streams while playing their favorite games, improving their gaming experience and performance.
3. Multimedia Consumption: PiP monitors allow users to consume multiple media sources concurrently, such as watching a movie while keeping an eye on live news or social media feeds, providing a more engaging and immersive entertainment experience.

How to Enable PiP on Your Monitor

Step-by-Step Guide for Different Monitor Brands (ASUS, Dell, MSI)

Enabling PiP on your monitor may vary depending on the brand and model. However, most monitors follow a similar process:

1. ASUS Monitors:

   • Press the "Menu" button on your monitor and navigate to the "PiP/PbP" settings.
   • Select "PiP" and choose the input source for the secondary window.

   • Adjust the size and position of the PiP window according to your preference.

2. Dell Monitors:

   • Press the "Menu" button and select "Display".
   • Navigate to "Picture-in-Picture" and choose the input source for the secondary window.
   • Customize the size and position of the PiP window as desired.

3. MSI Monitors:

   • Press the "Menu" button and select "PiP/PbP".
   • Choose "PiP" and select the input source for the secondary window.
   • Adjust the size and position of the PiP window to your liking.


Adjusting Settings for Optimal Viewing

To ensure an optimal viewing experience, you may need to adjust your monitor's settings. This may include:

1. Resolution: Set your monitor to its native resolution for the sharpest image quality.
2. Refresh Rate: Choose a refresh rate that matches your video source to avoid screen tearing or stuttering.
3. Color Settings: Adjust the brightness, contrast, and color settings to suit your preferences and lighting conditions.
4. PiP Settings: Customize the size, position, and transparency of the PiP window to achieve the perfect balance between your primary and secondary video sources.

Comparisons and Considerations

Built-in KVM vs. PiP/PbP: What to Choose and Why

When choosing between a monitor with built-in KVM (Keyboard, Video, and Mouse) functionality and one with PiP/PbP capabilities, consider your specific needs:

1. Built-in KVM: Ideal for users who need to control multiple computers with a single set of peripherals, reducing desk clutter and simplifying device management.
2. PiP/PbP: Perfect for users who require simultaneous viewing of multiple video sources for multitasking, content creation, or entertainment purposes.

Ultimately, the choice between built-in KVM and PiP/PbP depends on your primary use case and the level of multitasking you require.

Also see: Arzopa Z1FC Portable Gaming Monitor

Gaming anywhere with Arzopa Z1FC 144Hz Portable Gaming Monitor for PS5, Xbox, Nintendo Switch, and more. Features a full HD and 100% sRGB IPS screen for stunning visuals. Ultra-fast speed of 144Hz allows immediate action on screen. Why not experience smoother, clearer gaming movement now!

Arzopa Z1FC 144Hz Portable Gaming Monitor 16.1" Screen

• 16.1 Inch Full HD (1920x1080p) IPS with a premium aluminum design.
• 1.7 lb weight and 0.3-inch thickness make it ideal for on-the-go use.
• Supports PS5, Xbox, Switch, Steam Deck, PCs, phone, and more.
• Includes a built-in stand for both portrait and landscape viewing.

BUY NOW

Other Monitor Features that Complement PiP/PbP

To enhance your PiP/PbP experience, look for monitors with additional features such as:

1. High Resolution: 4K or ultra-wide monitors provide more screen real estate, allowing for larger PiP/PbP windows and improved multitasking capabilities.
2. Fast Response Times: Monitors with low response times reduce motion blur and ghosting, ensuring a smooth and seamless viewing experience.
3. Adaptive Sync: Technologies like AMD FreeSync or NVIDIA G-Sync eliminate screen tearing and stuttering, providing a more immersive and fluid visual experience.
4. Ergonomic Design: Adjustable stands, pivot, and tilt functions enable you to position your monitor for optimal comfort and viewing angles.

Real-life Examples and Use Cases

PiP in Professional Settings (Video Editing, Stock Trading)

PiP monitors have become increasingly popular in professional settings, particularly in industries that require real-time monitoring of multiple data sources:

1. Video Editing: Video editors can use PiP to simultaneously view the source footage, editing timeline, and preview window, streamlining their workflow and improving efficiency.
2. Stock Trading: Traders can leverage PiP to monitor multiple stock charts, news feeds, and market data simultaneously, enabling them to make informed decisions quickly.

Gaming with PiP for Streaming or Multitasking

Gamers can benefit greatly from PiP monitors, particularly when streaming or multitasking:

1. Streaming: PiP allows gamers to play their favorite games while monitoring their live stream, chat, and alerts in a separate window, enhancing viewer engagement and interaction.
2. Multitasking: Gamers can use PiP to view walkthroughs, tutorials, or other relevant content while playing, improving their gaming experience and performance.

Everyday Use for Video Calls and Content Consumption

PiP monitors are not just for professionals and gamers; they also offer significant benefits for everyday users:

1. Video Calls: PiP enables users to participate in video calls while simultaneously working on other tasks, improving productivity and communication.
2. Content Consumption: Users can watch their favorite movies or TV shows while keeping an eye on live news, social media feeds, or other relevant content, providing a more engaging and immersive entertainment experience.

Troubleshooting and FAQs

Common Issues with PiP/PbP and Solutions

1. No PiP/PbP Option: Ensure that your monitor supports PiP/PbP and that you have enabled the feature in the monitor's settings menu.
2. Input Source Not Detected: Check that your input source is properly connected and that you have selected the correct input in your monitor's settings.
3. PiP Window Too Small: Adjust the size of the PiP window in your monitor's settings menu to ensure optimal visibility.
4. Audio Issues: Verify that you have selected the correct audio source in your monitor's settings and that your speakers or headphones are properly connected.

Compatibility Questions and Hardware Requirements

To ensure compatibility with PiP/PbP, your monitor and input sources must meet certain hardware requirements:

1. Monitor: Your monitor must support PiP/PbP functionality and have multiple input ports (e.g., HDMI, DisplayPort, USB-C).
2. Input Sources: Your input sources (e.g., computer, gaming console, streaming device) must have compatible output ports and support the resolution and refresh rate of your monitor.
3. Cables: Use high-quality cables that are compatible with your monitor and input sources to ensure optimal performance and reliability.

How to Check if Your Monitor Supports PiP/PbP

To determine if your monitor supports PiP/PbP, consult the following resources:

1. Monitor Manual: Check your monitor's user manual for information on PiP/PbP functionality and compatibility.
2. Manufacturer Website: Visit your monitor manufacturer's website and search for your specific model to find detailed specifications and features.
3. Physical Inspection: Look for multiple input ports (e.g., HDMI, DisplayPort, USB-C) on your monitor, which may indicate PiP/PbP support.
4. On-Screen Display (OSD): Access your monitor's OSD menu and look for PiP/PbP settings or options.

Conclusion

Picture-in-Picture (PiP) monitors have revolutionized the way we multitask, work, and consume content. By allowing users to view multiple video sources simultaneously, PiP monitors offer unparalleled flexibility and efficiency across various industries and use cases. As technology continues to evolve, we can expect PiP monitors to become even more advanced, with higher resolutions, faster response times, and more intuitive controls.

When choosing a PiP monitor, consider your specific needs and preferences, such as screen size, resolution, input compatibility, and additional features like built-in KVM or adaptive sync. By investing in a high-quality PiP monitor that meets your requirements, you can unlock new levels of productivity, creativity, and entertainment.

We hope this comprehensive guide has provided you with valuable insights into the world of PiP monitors and has helped you make an informed decision when selecting the perfect display for your needs. If you have any further questions or experiences to share, please feel free to leave a comment below. Don't forget to share this article with your friends and colleagues who may benefit from the power and versatility of Picture-in-Picture monitors!
