Chroma subsampling, a crucial video compression technique, significantly impacts the image quality of your monitors and TVs. This article delves into the intricacies of chroma subsampling, explaining its importance, different standards, and impact on various applications, especially gaming and high-resolution displays. We'll explore the differences between 4:4:4, 4:2:2, and 4:2:0 chroma subsampling, examining their visual impact and implications for your viewing experience.
Definition of Chroma Sampling and Its Importance
Chroma sampling, or chroma subsampling, is a video compression technique that reduces the amount of color information (chrominance) in a video signal while retaining the full brightness information (luminance). This works because the human eye is significantly more sensitive to changes in brightness than to subtle shifts in color. By reducing the chrominance data, significant bandwidth savings and reduced file sizes can be achieved without a noticeable loss in perceived image quality for the average viewer. This is a key consideration for high-resolution displays and streaming services where bandwidth is a limiting factor. For example, a 4:2:0 subsampling scheme can reduce bandwidth requirements by almost 50% compared to 4:4:4. This allows for smoother streaming of 4K content on services like Netflix and Amazon Prime.
The YUV Color Space
The most common color space used in conjunction with chroma subsampling is YUV (or Y'CbCr). YUV separates the video signal into three components:
-
Y (Luma): Represents the luminance or brightness information. Think of this as the grayscale version of your image. It’s critical for contrast and shape recognition, much like a black and white photograph still conveys detail despite lacking color.
-
Cb (Chrominance Blue): Represents the blue color difference.
-
Cr (Chrominance Red): Represents the red color difference.
The 'Y' component typically takes up one-third of the total signal, hence the feasibility of subsampling the 'Cb' and 'Cr' components.
Chroma Subsampling: 4:4:4 vs. 4:2:2 vs. 4:2:0
The different chroma subsampling ratios represent the amount of chrominance data retained relative to the luminance data. Let's break down each:
4:4:4 Chroma Subsampling
-
Description: No chroma subsampling. Full color resolution is maintained for all color channels. Think of it as the highest fidelity reproduction of color information.
-
Bandwidth Requirement: The highest of the three formats; it necessitates connections capable of handling high bandwidth like HDMI 2.1 or DisplayPort 1.4 with DSC (Display Stream Compression).
-
Best Use Cases: Professional video editing, high-end gaming (where color accuracy is paramount), and graphic design.
4:2:2 Chroma Subsampling
-
Description: Chroma channels are subsampled horizontally, meaning the color information is halved horizontally while maintaining full vertical resolution.
-
Bandwidth Requirement: Saves approximately 30% bandwidth compared to 4:4:4.
-
Best Use Cases: Broadcasting, professional video production, and situations where high color fidelity is required without the extreme bandwidth demands of 4:4:4.
4:2:0 Chroma Subsampling
-
Description: Chroma is sampled at half the horizontal and half the vertical resolution. This means that color information is averaged over a 2x2 pixel grid.
-
Bandwidth Requirement: The lowest of the three. Achieves approximately 50% bandwidth reduction compared to 4:4:4.
-
Best Use Cases: Consumer applications, streaming services (Netflix, Amazon Prime use 4:2:0 for 4K), Blu-ray discs, and applications where bandwidth optimization is prioritized.
Visual Impact of Chroma Subsampling
The visual difference between these formats depends heavily on the type of content and the resolution of the display. At 4K resolution and above, the differences between 4:2:2 and 4:2:0 are often imperceptible to the average viewer in moving video. However, 4:4:4 offers a noticeable advantage for text clarity, especially small text on colored backgrounds. This makes it a desirable option for PC usage. The artifacts associated with chroma subsampling are most evident in static images or scenes with fine color detail. For example, subtle color banding or blurring might appear in text-heavy scenes of Cyberpunk 2077 when using 4:2:0.

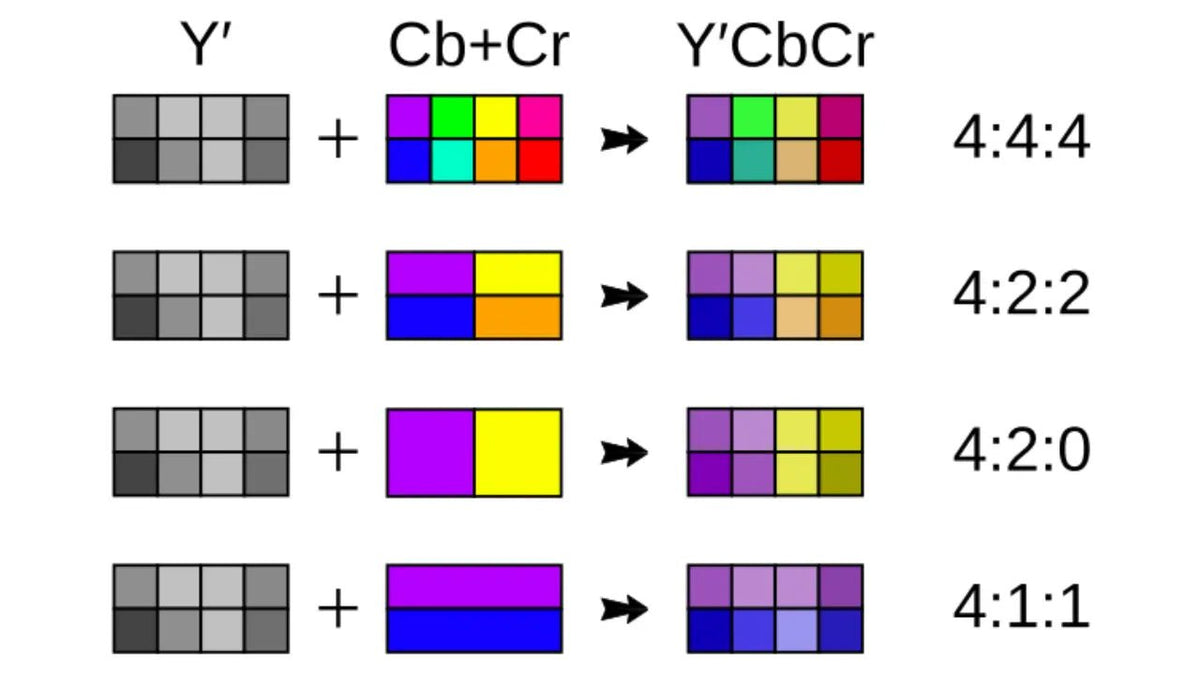

Image Credit: Videomaker website
How Chroma Subsampling Affects Your Monitor Settings?
Most modern monitors and TVs support multiple chroma subsampling options. However, activating 4:4:4 often requires tweaking settings. Here's a general guideline (settings may vary between brands and models):
- Access TV/Monitor Settings: Navigate to the settings menu (usually via a button on the remote or on-screen menu).
- Locate HDMI Settings: Look for options like "HDMI UHD Color," "HDMI Enhanced Format," or similar.
- Enable 4:4:4: Select the appropriate setting to enable 4:4:4 chroma subsampling. This may require selecting the correct input source (e.g., "PC" mode), picture mode ("Graphics" mode sometimes works), or color depth (10-bit or 12-bit for higher fidelity).
-
Brand Specific Settings: Some brands, like Sony, require selecting "HDMI UHD color" under expert settings. TCL models often automatically detect PC connections and enable 4:4:4 support.
Chroma Subsampling in TVs vs. Monitors
While both TVs and monitors use chroma subsampling, the implications differ. TVs are primarily designed for video consumption where the subtle differences between 4:2:0 and 4:2:2 are often insignificant at higher resolutions (e.g., 4K and above). Manufacturers usually opt for 4:2:0 to maximize bandwidth efficiency. Monitors, particularly those used for PC gaming and professional work, often benefit from 4:4:4 due to the greater importance of text clarity and color accuracy.
Chroma Subsampling and Ultra-High Resolution Displays
The demand for higher refresh rates in ultra-high-resolution displays (like 4K at 120Hz or 144Hz, even 8K) poses a significant bandwidth challenge. DisplayPort 1.4, for instance, has a maximum bandwidth of 25.92 Gbit/s. Achieving 4K at 120Hz with 10-bit color requires 32.27 Gbit/s. To overcome this limitation, chroma subsampling (often 4:2:2 or even 4:2:0) is frequently employed, enabling higher refresh rates at the cost of some color detail. High-end gaming monitors like the ASUS PG27UQ and Acer X27, both with 3840x2160 resolutions and up to 144Hz refresh rates, highlight this trade-off; they cost around $2000 precisely because they need to manage this complexity. Display Stream Compression (DSC) is a newer lossless compression technique that helps alleviate this problem and allows higher-bandwidth operations on existing DisplayPort 1.4 or HDMI 2.1 cables.
Using 4K TVs as Monitors: Chroma Subsampling Considerations
Using a 4K TV as a monitor is becoming increasingly popular. However, the chroma subsampling capabilities of the TV become crucial. If you plan on using it primarily for PC work or gaming that involves a lot of text, ensuring support for 4:4:4 is essential for optimal clarity. Many 4K TVs default to 4:2:0, suitable for movie viewing but often insufficient for sharp text rendering in text-based games or applications. Before committing to this dual-purpose set up, check the TV's specifications and ensure it can achieve 4:4:4, 10-bit, PC mode, and other optimal settings for this use case.
Chroma Subsampling and Gaming Performance
The impact of chroma subsampling on gaming performance is a nuanced issue. In many games, subsampling at 4K is almost visually imperceptible to the average player. High-demand games such as Cyberpunk 2077 and Fortnite are usually optimized to work with chroma subsampling; however, issues like reduced clarity in detailed color-dependent assets (textures, text) or subtle color banding can only be noticeable at 4:2:0. The more demanding the visual requirements of a game, the more noticeable the potential impact of chroma subsampling might become. Using a 4:4:4 setting, if your hardware allows it, is generally preferred for maximizing image quality, but may require more advanced hardware to achieve high refresh rates at the desired resolution.
Is YCbCr Chroma Subsampling Limited by a Monitor's Support?
Yes, the capabilities of your monitor directly affect your potential to utilize distinct YCbCr chroma subsampling rates. A monitor's HDMI and DisplayPort inputs, along with its processing capabilities, determine the supported sampling rates and color depths. Older monitors may only support 4:2:0 or 4:2:2, while newer high-end models might offer 4:4:4 support but may require specific cable and input configurations such as DisplayPort 1.4 with DSC. Even with support, 4:4:4 may be limited to specific refresh rates or resolutions due to bandwidth constraints.
Conclusion
Understanding chroma subsampling is crucial for both consumers and professionals alike. While the differences between subsampling methods might seem subtle, they have significant consequences for bandwidth efficiency, file sizes, and overall image quality. For most consumers, the automatic settings on their devices are often sufficient. However, for high-end applications such as professional video editing, high-end gaming, and situations demanding pixel-perfect precision, grasping the nuances of chroma subsampling allows for informed decisions to maximize visual fidelity and optimize workflow efficiency. The choice between 4:4:4, 4:2:2, and 4:2:0 ultimately depends on balancing the need for image quality with bandwidth and storage constraints, factoring in resolution, content type, and intended application.
We hope this comprehensive guide has given you some insights into the importance of Chroma Sampling for monitors and TVs. If you have any further questions or would like to share your experiences about it, please leave a comment below. Don't forget to share this article with your friends and colleagues who may benefit from the information. Happy browsing!
FAQ
What are the noticeable visual differences between 4:4:4, 4:2:2, and 4:2:0 chroma subsampling in real-world scenarios?
In most real-world scenarios at higher resolutions (4K and above), the differences between 4:2:2 and 4:2:0 are minimal for video playback in motion. However, 4:4:4 boasts significantly sharper and more accurate color representation, especially in images with fine details including text. The differences become more noticeable with static images or scenes containing sharp color transitions and small text. To check this, use a test pattern similar to those available in Windows Paint – open a text document with different color backgrounds and fonts, and observe the clarity of the text in each chroma sampling model. 4:2:0 might show some blurring or color bleeding artifacts, especially on text appearing on a color-rich background. This effect is less pronounced, and often imperceptible, in fast-paced video content at high resolutions. The visual degradation becomes more obvious when the chroma subsampling is applied to smaller, text-rich areas within a much larger image at higher resolutions, such as in a video game HUD or an interface element in a desktop interface.
How does chroma subsampling impact the file size of video content, and how does this translate to streaming services and storage?
Chroma subsampling dramatically reduces file sizes. The color data, chrominance, is what takes up most of bandwidth, so by sampling this less, it saves a substantial amount of storage space and bandwidth. For example, 4:2:0 reduces the file size by roughly 50% compared to 4:4:4. This reduction is critical for streaming services like Netflix and Amazon Prime, allowing them to deliver high-resolution 4K content efficiently while managing bandwidth constraints. Also, in professional video editing, for instance, choosing a lower chroma subsampling rate—4:2:2 or 4:2:0—allows for longer periods of video editing and rendering, as the data processing time would be reduced substantially. Conversely, storing videos in a higher chroma subsampling rate, such as 4:4:4, will take up a lot more storage space, even in a non-compressed format, as it needs to store the full color information across all pixels.
Are there any downsides to using chroma subsampling, and how can the perceived quality be improved in case of artifacts using different methods?
Yes, while chroma subsampling offers significant bandwidth and storage advantages, it can introduce artifacts like color bleeding, blurring, and color banding, most visible in static images with fine color detail or text-heavy scenes. These artifacts are particularly noticeable at lower resolutions. To reduce these artifacts, several techniques are used: "Iterative sharp YUV methods," which attempt to reconstruct missing color information using luminance information. Post-processing techniques like "in-range chroma reconstruction" help mitigate the quality loss caused by subsampling and improve the perceived image quality before the final image is displayed. These methods try to predict color components based on neighboring pixels, creating slightly more accurate colors, although they do not recover the information that was lost during the subsampling process. Higher bit depths (10-bit or 12-bit), which offer finer color gradations, can also help reduce the visual impact of subsampling artifacts. These, coupled with better encoding, have helped reduce visual artifacts at higher resolutions like 4K where they are largely imperceptible to the human eye in motion video.
