In the ever-evolving world of technology, portable monitors have become increasingly popular for their versatility and convenience. However, a common question that arises is can HDMI alone can power a portable monitor. The short answer is no, HDMI cannot directly power a portable monitor without an additional power source. Let's delve into the reasons behind this limitation and explore alternative solutions.
Understanding HDMI and Power Supply
HDMI, which stands for High-Definition Multimedia Interface, is primarily designed for transmitting high-quality video and audio signals. While it does have some power-carrying capacity, it's insufficient for powering most portable monitors. The power-carrying capabilities of HDMI are limited to a maximum of 5 volts at 50 mA, which translates to just 0.25 watts of power. This is far below the power requirements of most portable monitors, which typically need at least 1-2 watts to function properly.
To better understand why HDMI falls short in powering portable monitors, let's take a closer look at its power supply capabilities:
HDMI Power Specifications:
- Maximum voltage: 5 volts
- Maximum current: 50 mA
- Maximum power output: 0.25 watts (via Pin #18)
Typical Device Power Requirements:
- Most external multimedia devices require 1-2 watts, which is 4-8 times more than HDMI can provide.
- Streaming devices like Chromecast demand even more power than what HDMI can deliver.
HDMI Cable Technology:
- HDMI cables have 19 pins in total, with Pin #18 dedicated to power.
- Other important pins include those for Consumer Electronics Control (CEC) and Display Data Channel (DDC).
It's worth noting that the latest HDMI 2.1a standard introduced a feature called HDMI Cable Power, which can provide up to 5V at 300mA (1.5W). While this is an improvement, it's still insufficient for powering most portable monitors.
USB-C: The Power and Video Solution
In contrast to HDMI, USB-C has emerged as a superior option for powering portable monitors while simultaneously transmitting video signals. Here's why USB-C is a better choice:
-
Power Delivery: USB-C can deliver up to 100 watts of power, which is more than enough for most portable monitors.
-
Versatility: USB-C supports both power delivery and video transmission through a single cable, simplifying connectivity.
-
Data Transfer Speeds: USB-C offers high data transfer speeds, with USB 3.1 supporting up to 10 Gbps and Thunderbolt 3 reaching up to 40 Gbps.
-
Video Signal Support: USB-C supports video transmission using Alt Mode, which utilizes DisplayPort technology.
-
Reversible Design: The USB-C connector is reversible, making it easier to plug in and reducing wear and tear on ports.
These features make USB-C an ideal solution for portable monitors, as it can provide both the necessary power and high-quality video signal through a single, compact cable.
HDMI to USB-C Adapter: A Hybrid Solution
For those who have devices with HDMI output but want to use a USB-C powered portable monitor, HDMI to USB-C adapters offer a potential solution. Here's what you need to know about these adapters:
Functionality: HDMI to USB-C adapters allow HDMI devices to connect with USB-C ports, enabling video output from devices that lack HDMI ports.
Types of Adapters:
- USB-C to HDMI cable: Requires a USB-C device with HDMI Alt Mode support.
- USB-C to HDMI adapter: May not necessarily require Alt Mode support.
Signal Quality: USB-C to HDMI adapters typically provide better video quality, often supporting 4K resolution at 60Hz.
Limitations:
- Not all devices support HDMI Alt Mode, so compatibility should be checked.
- Signal loss may occur with poor-quality adapters or cables.
- These adapters don't solve the power issue; a separate power source is still required for the portable monitor.
When using an HDMI to USB-C adapter, it's important to remember that while it can transmit the video signal, it doesn't address the power requirements of the portable monitor. You'll still need to provide power to the monitor through its USB-C port or a separate power input.
Step-by-Step Guide: Connecting a Portable Monitor
To help you set up your portable monitor effectively, here's a step-by-step guide:
1. Check your device's output
Determine whether your laptop or device has a USB-C port with video output capabilities or if you'll need to use HDMI.
2. Choose the right cable or adapter:
- For USB-C devices: Use a USB-C to USB-C cable that supports video and power delivery.
- For HDMI devices: Use an HDMI cable along with a separate power source for the monitor.
3. Connect the video cable:
- USB-C: Plug the cable into both your device and the monitor.
- HDMI: Connect the HDMI cable from your device to the monitor's HDMI port.
4. Power the portable monitor:
- USB-C: If using a USB-C connection that supports power delivery, no additional power source is needed.
- HDMI: Connect the monitor to a power source using its USB-C power input or AC adapter.
5. Configure display settings:
- On Windows: Right-click on the desktop and select "Display settings."
- On macOS: Go to System Preferences > Displays.
- Adjust resolution, orientation, and arrangement as needed.
6. Troubleshooting:
- If no signal is detected, try unplugging and reconnecting the cables.
- Ensure your device's graphics drivers are up to date.
- Check if your USB-C port supports video output (some are data-only).
Remember, when using HDMI, you'll always need a separate power source for the monitor. USB-C connections can often provide both video and power, simplifying the setup process.
Edge Question: Is it Possible to Add More Type-C Ports?
As USB-C becomes increasingly popular, many users wonder if it's possible to add more Type-C ports to their devices. While it's not always straightforward, there are several solutions available:
-
USB-C Hubs: These devices can expand a single USB-C port into multiple ports, including additional USB-C connections. They're ideal for laptops and tablets with limited ports.
-
PCIe Expansion Cards: For desktop computers, you can install a PCIe card that adds USB-C ports. For example, the Inateck PCI-E to USB 3.1 Card (priced around $21.99) can add USB-C functionality to older systems.
-
Adapters: While not adding true USB-C ports, adapters can convert existing ports to USB-C. Options include: USB-C to USB-A Adapter (approximately $6.49)/USB-A to USB-C Adapter (approximately $5.91)
-
Docking Stations: For laptops, a docking station can provide multiple USB-C ports along with other connection types.
-
Upgrading Your Device: If you frequently need multiple USB-C ports, consider upgrading to a device that comes with more built-in USB-C connections.
It's important to note that while these solutions can increase the number of available USB-C ports, they may not all support the full range of USB-C features like high-speed data transfer or video output. Always check the specifications of any expansion device to ensure it meets your needs.
Case Study: Real-Life Examples of Portable Monitor Use
To illustrate the practical applications and benefits of portable monitors, let's explore a few real-life scenarios:
-
The Digital Nomad: Sarah, a freelance graphic designer, frequently travels for work. She uses a 15.6-inch ViewSonic VG1655 portable monitor alongside her laptop. The USB-C connection allows her to power the monitor and transmit video through a single cable, simplifying her setup in coffee shops and co-working spaces. Sarah appreciates the extra screen real estate for her design work, especially when working with multiple applications simultaneously.
-
The Business Presenter: John, a sales manager, often gives presentations to small groups of clients. He carries an Asus ZenScreen Go MB16AWP, which features a built-in battery and Wi-Fi connectivity. This allows him to wirelessly present from his laptop or even his smartphone, without worrying about cable connections or power outlets. The portability and ease of setup have significantly improved his presentation workflow.
-
The Student Coder: Emily, a computer science student, uses an Innocn 15A1F OLED portable monitor for coding projects. The high-quality display and USB-C connection make it easy for her to set up a dual-screen workspace in the library or during group study sessions. The ability to quickly extend her laptop's display has improved her productivity when working on complex programming assignments.
-
The Mobile Gamer: Mike, an avid gamer, uses the Espresso 17 Pro portable monitor to enhance his gaming experience on the go. The 4K resolution and touchscreen compatibility allow him to enjoy high-quality gaming visuals whether he's connecting his gaming laptop or a mobile device. The USB-C connection provides both power and video, simplifying his setup process.
These case studies demonstrate the versatility and practicality of portable monitors across various professions and lifestyles. The ease of connection, particularly with USB-C, has made these devices invaluable tools for enhancing productivity and entertainment on the go.

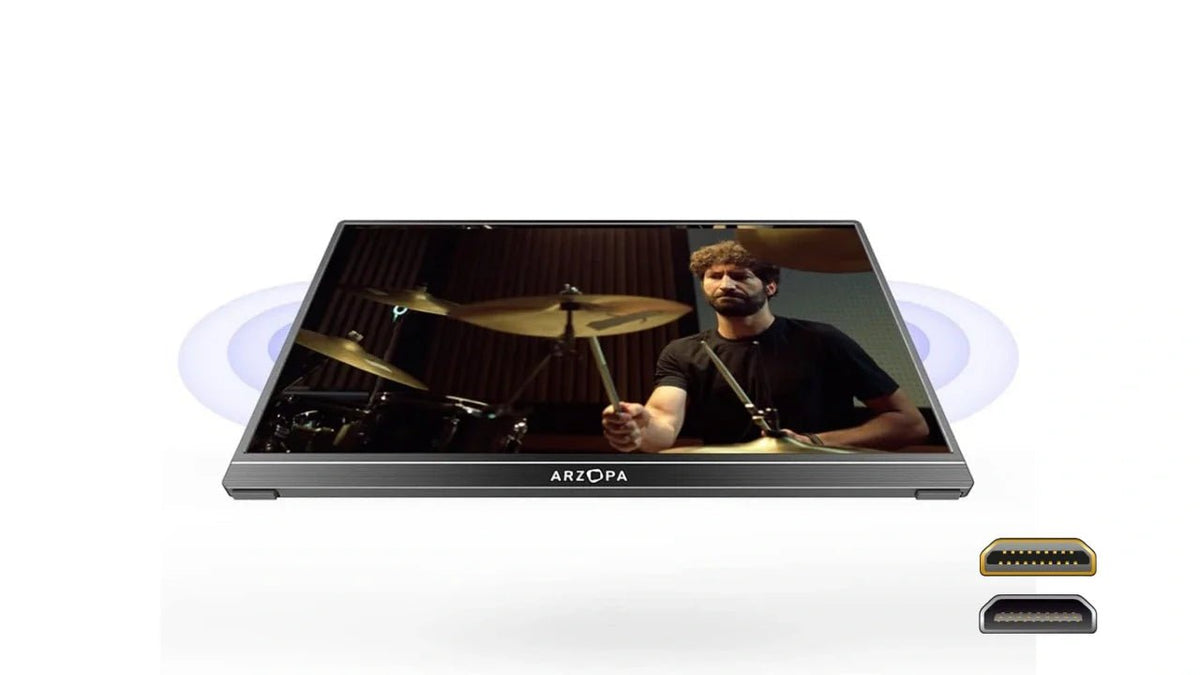

Editor Recommendation: Arzopa Z1FC 144Hz Portable Gaming Monitor
Upgraded 16.1" screen, make games and video have wider display space. Immerse yourself in vibrant colors and crisp details with 100% sRGB gamut and 1080P FHD resolution on a 16.1" IPS anti-glare display.
Arzopa Z1FC 144Hz Portable Gaming Monitor 16.1" Screen
- 16.1 Inch Full HD (1920x1080p) IPS with a premium aluminum design.
- 1.7 lb weight and 0.3-inch thickness make it ideal for on-the-go use.
- Supports PS5, Xbox, Switch, Steam Deck, PCs, phone, and more.
- Includes a built-in stand for both portrait and landscape viewing.
Conclusion: The Future of Portable Monitor Connectivity
As we've explored, while HDMI cannot directly power portable monitors, the rise of USB-C technology has revolutionized how we connect and power these devices. The future of portable monitor connectivity looks bright, with ongoing advancements in USB-C and Thunderbolt technologies promising even faster data transfer speeds and more efficient power delivery.
If you have any further questions, just feel free to leave your thoughts on the comment section below!
FAQs: Connecting a Monitor to Your Laptop
Q1: Can I use any USB-C port on my laptop to connect a portable monitor?
A: Not all USB-C ports are created equal. While many USB-C ports support video output, some are designed for data transfer or charging only. Check your laptop's specifications or user manual to confirm which ports support video output. Look for ports that mention "DisplayPort Alt Mode" or "Thunderbolt" support, as these are typically capable of video output.
Q2: Why doesn't my HDMI connection power my portable monitor?
A: HDMI is primarily designed for audio and video transmission, not power delivery. The power provided through an HDMI connection (about 0.25 watts) is insufficient for operating a monitor. Most portable monitors require at least 1-2 watts to function properly. This is why you need a separate power source when using HDMI for video output.
Q3: How do I know if my USB-C connection can provide enough power for my portable monitor?
A: Check the specifications of both your laptop and the portable monitor. Most modern laptops with USB-C ports support USB Power Delivery (USB-PD), which can provide up to 100 watts of power. However, the actual power output can vary. Your portable monitor's manual should indicate its power requirements. Generally, if your laptop can charge through its USB-C port, it should be able to power most portable monitors.
Q4: Can I use a portable monitor with my smartphone?
A: Yes, many smartphones, especially newer models with USB-C ports, can connect to portable monitors. However, compatibility varies depending on the phone model and its software. Some phones may require specific settings or apps to enable external display support. Always check your smartphone's specifications and the monitor's compatibility list before purchasing.
Q5: What's the difference between using HDMI and USB-C for connecting a portable monitor?
A: The main differences are:
- Power delivery: USB-C can often power the monitor and transmit video simultaneously, while HDMI requires a separate power source.
- Cable simplicity: USB-C uses a single cable for both video and power, whereas HDMI setups typically require two cables.
- Versatility: USB-C supports data transfer in addition to video and power, making it more versatile for various devices and use cases.
- Resolution and refresh rates: Both can support high resolutions, but the latest USB-C standards (like Thunderbolt 4) can support higher refresh rates at 4K resolution compared to standard HDMI.
Q6: Are there any disadvantages to using USB-C for portable monitors?
A: While USB-C offers many advantages, there are a few potential drawbacks:
- Compatibility issues: Not all USB-C ports support video output or power delivery.
- Power drain: Using a USB-C port for both video and power can significantly drain your laptop's battery faster.
- Quality variations: The performance of USB-C cables can vary widely, so it's important to use high-quality cables for the best experience.
- Cost: USB-C monitors and high-quality cables can be more expensive than their HDMI counterparts.
