Brightness, a seemingly simple concept, encompasses a surprising level of complexity. This guide delves into the science behind various brightness units, explores measurement techniques. We'll cover everything from choosing the right unit for your needs to understanding the nuances behind projector lumens and screen nits, even venturing into DIY methods for approximating brightness without specialized equipment.

Science Behind Brightness Measurements

Brightness, in the context of light, refers to the perceived intensity of light. However, how we measure that intensity depends heavily on the application. Several units exist, each with its strengths and weaknesses. The most common are lumens, nits, and lux.

Lumens: Total Light Output

Lumens (lm) measure the total amount of visible light emitted by a source – be it a lightbulb, flashlight, or projector. A higher lumen rating signifies a brighter light source. It's a crucial specification for everyday lighting and projectors, allowing for comparisons between different models. For example, a 1000-lumen projector will generally be brighter than a 500-lumen one.

Nits: Screen Brightness

Nits (cd/m²), or candelas per square meter, specifically measure the brightness of a screen or display. It's the luminous intensity per unit area, indicating how much light is emitted from each square meter of the screen's surface. Higher nits generally mean a brighter, more vibrant image, particularly important for outdoor displays or those in brightly lit rooms. A monitor with 300 nits will appear brighter than one with 200 nits under similar conditions.

Lux: Illuminance on a Surface

Lux (lx) measures the illuminance – the amount of light falling on a surface area. One lux is equal to one lumen per square meter. Unlike lumens, which describe the source's output, lux describes how much light actually reaches a specific area. This is useful in photography, interior design, and horticulture, where the lighting level on a subject is paramount. A reading of 500 lux on a desk indicates brighter illumination than 100 lux.

Lumens vs. Nits vs. Lux

The relationship between these units can be confusing. Lumens measure the light source's output; nits measure the light emitted from a surface; and lux measures the light falling onto a surface. Consider a projector: Its brightness is measured in lumens (total light output), but the perceived brightness on the viewed screen is measured in nits (light emitted per square meter of the screen). The illuminance on the screen from the projector would be measured in lux.

Lumens: The Brightness Measure for Flashlights and Light Bulbs

Lumens are the standard unit for incandescent, fluorescent, and LED bulbs. Higher lumens indicate brighter illumination. Measuring flashlight brightness usually involves using a dedicated light meter or comparing it to flashlights with known lumen ratings under controlled conditions.

Nits: The Brightness Measure for Screens and Displays

Nits are crucial for displays. Higher nits mean a brighter image, essential for readability in various ambient light levels. Determining a monitor's brightness without a meter is difficult, but comparing it to other screens or checking the manufacturer's specifications can provide a rough estimate.

ANSI Lumens: The Projector Brightness Standard

ANSI lumens are a standardized way to measure projector brightness, reducing variability among manufacturers. This standard calculates brightness through multiple measurement points across the projected image. Determining requirements involves several steps: Room size, ambient light levels, and desired screen size are pivotal aspects to measure brightness levels for certain applications.

ANSI lumens differ from claimed lumens in that they are actually measured across multiple points of the projected image. Typical manufacturers often overstate the brightness levels to make the products look attractive to consumers. This is because they are usually not measuring standardized across all points of the image. Consumers who are naive in projector purchases might not get value of their investment based on the discrepancy between what is shown in the advertisements and actual value received. For example, if a projector is advertised to have 5000 lumens, one can anticipate the actual usable brightness to be at 50% of the advertised value.

Choosing the Right Projector Brightness for Your Needs

The necessary projector lumens depend on various factors:

• Room size: Larger rooms need brighter projectors.
• Ambient light: Brighter rooms require higher lumen output.
• Screen size: Larger screens need more lumens for a consistently bright image.

A dimly lit room might only require 1000-1200 ANSI lumens, while a brightly lit room with a large screen could need 4000-5000 ANSI lumens or more. Always consider the ambient light conditions; brighter ambient light mandates more lumens.

How to Choose the Right Brightness Unit

The appropriate brightness unit depends entirely on the application:

• For lightbulbs and flashlights: Lumens are the primary specification.
• For screens and displays: Nits are essential.
• For measuring light levels on a surface: Lux is the right choice.
• For projectors: While lumens (often ANSI lumens – see below) are common, understanding nits is crucial for gauging screen brightness in different viewing conditions.

Measuring Brightness: Tools and Techniques

Accurate brightness measurement typically requires specialized equipment.

The Role of Light Meters in Measuring Brightness

Light meters, also known as lux meters or luminance meters, are essential for precise measurements. Lux meters measure illuminance (lux), allowing for accurate assessment of light levels in a given area. Luminance meters measure luminance (nits), perfect for evaluating screen brightness.

How to Use a Lux Meter for Accurate Readings

Using a lux meter is straightforward:

1. Power on: Turn on the lux meter and wait for it to stabilize reading.
2. Position the meter: Place the meter facing the light source, ensuring the sensor is correctly positioned.
3. Take the reading: Observe the measurement appearing on the luxmeter displays screen. Note all the readings in a dedicated notebook, or via memory functionality on the meters itself.
4. Repeat: Take multiple readings from different angles to ensure accuracy. For instance, with a 100 lux meter reading, repeated measurements should stay in range and not fluctuate dramatically.

DIY Methods to Approximate Brightness Without a Meter

While a light meter is ideal for accurate brightness measurements, several DIY methods can provide reasonable approximations:

The Bortle Scale for Night Sky Brightness

The Bortle scale, ranging from 1 (exceptionally dark) to 9 (bright inner city sky), provides a qualitative assessment of sky brightness. Using light pollution maps and apps like "Clear Outside," you can determine your location's Bortle class—useful for assessing suitability for astronomy and astrophotography. The author personally experienced a transition from Bortle 6 to Bortle 8 locations and found the impact on observational capabilities significant.

Globe at Night Program

The Globe at Night program is a citizen science initiative allowing you to contribute to light pollution measurements. By comparing the visible stars in a designated constellation to a reference chart, you can estimate its brightness on a scale. It's an excellent way to participate in a meaningful, community-centered effort to monitor light pollution. Family participation is encouraged!

Utilizing Sky Quality Meter to Gauge Night Sky Brightness

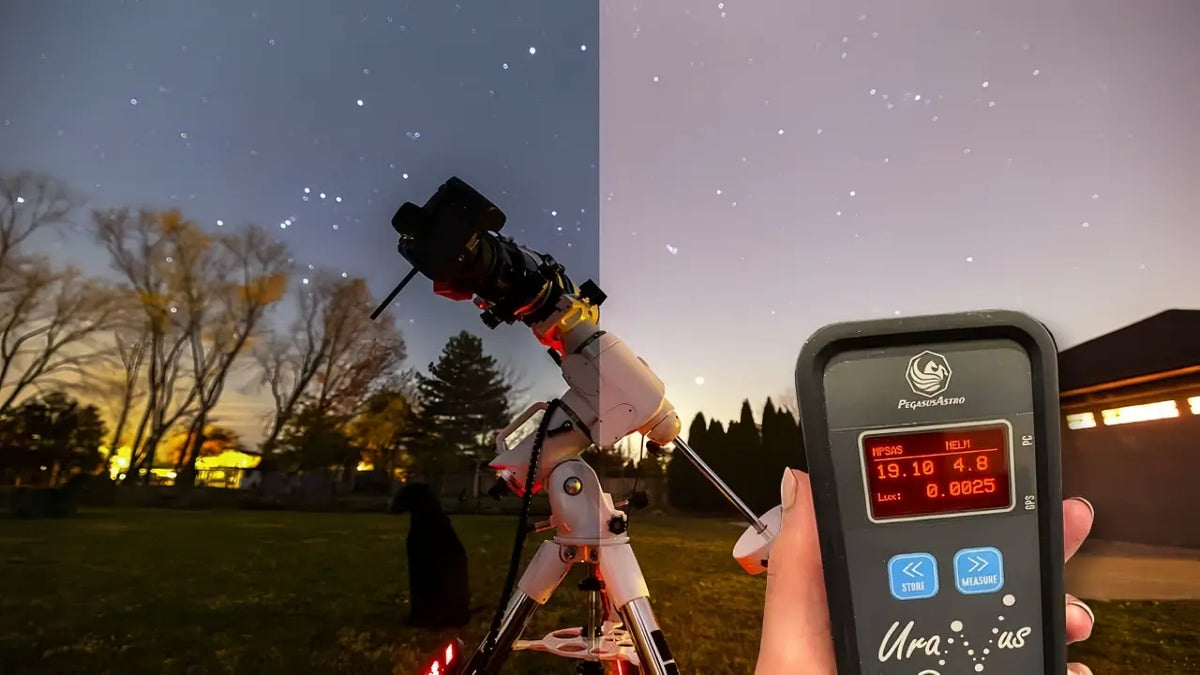

Sky Quality Meters (SQM) are designed explicitly for night sky brightness measurement, expressed in magnitudes per square arcsecond (MPSAS). These devices typically range from 16.00 (bright) to 22.00 (dark) MPSAS. Popular SQM models include the Unihedron Sky Quality Meter, which measures the brightness of the night sky. The author uses the Pegasus Uranus Meteo Sensor which typically gives readings around 19.10 MPSAS. It provides valuable readings, recording also environmental data, including temperature, humidity, pressure, moon phase, and cloud coverage. The device activates measure mode when the measure button is pressed. You need to remember to point the device towards the area of interest in the sky, and store the reading using the relevant buttons before switching off the display. GPS functions may take time if not actively used before use.

Conclusion

Understanding brightness and its various measurement units is critical across numerous fields. From everyday lighting choices to advanced scientific research, accurate brightness assessment is essential. As technologies continue to advance, expect more innovative measurement methods and a deeper comprehension of the complexities of light and its perception. The ongoing research in areas like frequency combs and AI-assisted systems highlights the evolving nature of this fundamental aspect of lighting and visual technologies.

FAQ

How does color temperature affect perceived brightness?

Color temperature, measured in Kelvin (K), significantly influences perceived brightness. Higher color temperatures (e.g., 6500K daylight LEDs) appear brighter and cooler to the human eye. Lower color temperatures (e.g., 2700K incandescent) produce warmer, softer light often deemed less bright. This subjective difference stems from our visual system's sensitivity to different wavelengths. For example, the 6500K produces predominantly higher levels of blue light compared to the yellow light generated by low temperature bulbs which affect the receptors in our eyes impacting how bright we perceive it.

What are the potential implications of inaccurate brightness measurements in various fields?

Inaccurate brightness measurements can have serious ramifications across multiple industries:

• Medical Imaging: Errors in calibrating medical imaging systems can lead to misdiagnosis and potentially harmful treatment decisions. Brightness calibration ensures consistent image interpretation, essential for diagnosis accuracy.
• Automotive Lighting: Incorrect lighting assessments can result in insufficient visibility, raising safety concerns for both drivers and pedestrians. Road safety is vital and brightness measurement allows standardized systems to meet regulatory compliance.
• Astronomy: Imperfect brightness measurements can lead to inaccuracies in understanding celestial objects, potentially impacting astronomical research and discoveries. Measuring light across huge distances is extremely difficult with current technology.

Can you elaborate on the challenges of measuring brightness in high-dynamic-range (HDR) displays?

Measuring brightness in HDR displays is significantly more elaborate than with standard displays. HDR displays have a far wider range of brightness levels and employ complex techniques for local dimming and contrast enhancement. This results in highly uneven luminance levels. Traditional brightness measurements struggle to capture the full dynamic range accurately and comprehensively. Current approaches involve utilizing high-intensity light meters and specialized software that accounts for brightness fluctuations across the screen. The development of HDR calibration techniques and advanced metering technologies is ongoing to adequately measure the dynamic range of these technologies.
