Arzopa A1M Portable Laptop Monitor Review | 1080P 17.3'' FHD IPS
In today's fast-paced life, portable monitors have become a must-have for business people, gamers and travellers alike, and the Arzopa A1M, a much-anticipated 17.3-inch portable monitor, has won accolades for its outstanding performance and design. In this article, we'll take an in-depth look at the Arzopa A1M, exploring all aspects of its performance to help you see if this monitor meets your needs.
Arzopa A1M Specifications
When choosing a portable monitor, it is vital to have a clear understanding of its specifications. Below are the detailed specifications for the Arzopa A1M to help you determine if it meets your needs.
| Category | Specification |
|---|---|
| Screen Size | 17.3'' |
| Resolution | 1920×1080 (Full HD) |
| Panel Type | IPS |
| Color Gamut | 72% NTSC |
| Brightness | 300 cd/m² |
| Contrast Ratio | 1000:1 |
| Refresh Rate | 60Hz |
| Response Time | 6ms |
| Viewing Angle | 178° |
| HDR Support | Yes (HDR10) |
| Ports | USB-C ×2, Mini HDMI ×1, 3.5mm Audio Jack |
| Speakers | Built-in dual speakers (1W ×2) |
| Power Supply | 5V/3A (USB-C powered) |
| Weight | 1160g |
| Body Material | Aluminum Alloy |
| Stand | Built-in adjustable stand |
| Compatible Devices | Laptops, Smartphones, PS5, Xbox, Nintendo Switch, Tablets, etc. |
| Dimensions (L×W×H) | 15.7 × 9.8 × 0.2 inches (approx. 39.8 × 24.9 × 0.5 cm) |
Best Use Cases: Office screen extension, gaming display, media entertainment, light design, and video editing.

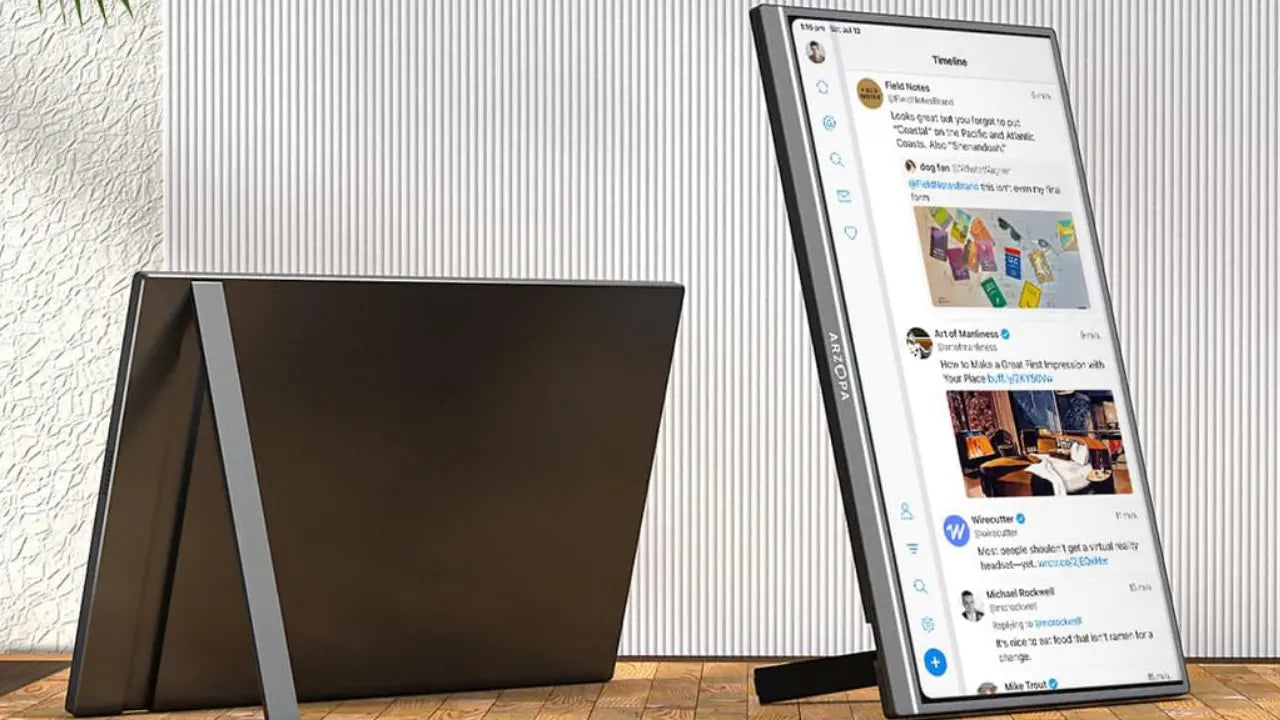

Design and Construction of Arzopa A1M Portable Monitor
The Arzopa A1M is made of high-quality aluminium alloy and has a thin, lightweight body that weighs only 1160g, making it easy to carry around. The monitor comes with a built-in stand that can be angled to meet the needs of different usage scenarios. Its 17.3-inch screen has a full HD resolution of 1920 x 1080 and a 16:9 widescreen ratio for a wide field of view and clear image quality.
Interfaces and Compatibility of A1M Portable Monitor
At the bottom, near the left edge of the A1M, are three ports: two USB-C ports and a mini HDMI port. Two cables are included, one USB-C to USB-C and one mini HDMI to HDMI, and you can connect the A1M to a wall-mounted AC power adapter (not included) via the USB-C cable, or you can power the A1 from a computer via the USB-C connection.
On the left side is the USB Type-C power input, USB Type-C power/video input and mini HDMI input. On the right side are the power/back button, OSD controls and audio out/headphone port.
You can use the USB-C connection to power the A1M (and receive data and video) from a laptop in some tests and the HDMI connection to receive data and video in some of my tests, while using the AC adapter for power.
Arzopa A1M supports a wide range of device connectivity, including laptops, smartphones, game consoles (e.g. Xbox One, PlayStation 4/5, Nintendo Switch), and more. Built-in 1W dual speakers provide basic audio output for daily use.
Display Performance of the A1M Portable Screen
The Arzopa A1M's IPS panel delivers vibrant colours and rich details. 300 nits of brightness provides a crisp display in any lighting condition. Contrast ratio of A1M portable display ensures deep blacks and bright whites with sharp contrast. 60Hz refresh rate is suitable for daily office, entertainment and light gaming needs.
The display performance of the Arzopa A1M portable screen is as follows:
- Resolution: It has a native resolution of 1920×1080, which can present clear and detailed images, suitable for various usage scenarios such as office work, movie watching and general gaming.
- Panel Type: The screen uses IPS technology, which provides wide viewing angles of 178° horizontally and vertically. Users can get a relatively consistent visual experience from different angles.
- Brightness: The rated brightness is 300 cd/m², which can ensure that the image is clearly visible in most indoor environments.
- Contrast Ratio: The contrast ratio is 1000:1, which can make the picture show rich details in dark and bright parts, and enhance the sense of hierarchy and realism of the image.
- Color Gamut: It covers 72% NTSC, which can display a relatively wide range of colors, making the picture colors more vivid and rich.
- Display Color: It supports 16.7 million colors (8-bit), which can present a rich and colorful visual effect.
- Color Temperature: The color temperature is 6800K, which makes the color of the screen tend to be natural and balanced, and is suitable for long-term viewing.
- Refresh Rate: The refresh rate is 60Hz, which can meet the needs of general office and daily entertainment, and make the screen display smooth without obvious stuttering.
Arzopa A1 VS A1S VS A1M
Choosing the right portable monitor can be challenging, especially when multiple models have similar features. To help you make an informed decision, we have compared three popular Arzopa models—A1, A1S, and A1M—based on key specifications. Whether you need a monitor for work, gaming, or entertainment, understanding the differences in screen size, resolution, brightness, and other factors will help you pick the best option. Here’s a detailed comparison of these three models:
| Specification | Arzopa A1 | Arzopa A1S | Arzopa A1M |
|---|---|---|---|
| Screen Size | 15.6 inches | 14 inches | 17.3 inches |
| Resolution | 1920×1080 (FHD) | 1920×1080 (FHD) | 1920×1080 (FHD) |
| Color Gamut | 45% NTSC | 45% NTCS | 72% NTSC |
| Brightness | 300cd/m2 | 250cd/m2 | 300cd/m2 |
| Contrast Ratio | 1200:1 | 800:1 | 1000:1 |
| Refresh Rate | 60Hz | 60Hz | 60Hz |
| Ports | USB-C ×2, Mini HDMI ×1 | USB-C ×2, Mini HDMI ×1 | USB-C ×2, Mini HDMI ×1 |
| Speakers | 1W ×2 | 1W ×2 | 1W ×2 |
| Weight | 780g | 600g | 1160g |
You can check out the difference between the A1M portable monitor VS Z1FC gaming portable screen.
User Experience of Arzopa A1M Portable Laptop Monitor
According to user feedback, the Arzopa A1M performs well when connecting to devices, and is plug-and-play and easy to operate. The display is clear and sharp with accurate colour reproduction. The built-in stand is solidly designed and can be adjusted to meet the needs of different usage scenarios. Overall, Arzopa A1M performs well in terms of portability, display performance and versatility, making it a recommendable portable monitor.
Conclusion
If you're looking for a high-performance and portable monitor, the Arzopa A1M is undoubtedly an option worth considering. Its great design, rich interfaces and excellent display performance make it stand out from its peers and fulfil your needs in all aspects of work, play and gaming.
FAQs
What is the Arzopa A1M Portable Laptop Monitor?
The Arzopa A1M Portable Laptop Monitor is a 17.3-inch display designed to be used with laptops, gaming consoles, and other devices. It offers a full HD resolution of 1920x1080 and is lightweight, making it easy to carry wherever you go. This monitor is perfect for people who want a second screen for work or gaming while on the move.
How do I connect the Arzopa A1M to my laptop?
Connecting the Arzopa A1M monitor to your laptop is simple. It has multiple ports, including two USB-C and a mini HDMI port. You can use a USB-C cable that comes with it to connect to your laptop or a mini HDMI cable to other devices. Just plug it in, and it’s ready to use!
What makes the Arzopa A1M stand out?
The Arzopa A1M stands out because of its high-quality display and versatile connectivity options. It has a full HD IPS display that offers excellent color and clarity, making it perfect for different uses, from work presentations to gaming sessions.
